Multiple Test Runners for Ruby Code Coverage with CodeCov

In Ruby development, maintaining code quality across versions is crucial. This post demonstrates how to set up a workflow to test your code across versions and generate detailed coverage reports, keeping your project robust as Ruby evolves.

If you don’t already have a working setup for Ruby code coverage, I recommend checking out my Ruby Code Coverage Setup Guide, where I explain how to configure coverage reports for different dependencies and runtimes via test runners. You can also find the example at ryancyq/ruby-code-coverage.

Prerequisites

These are the tools being used:

CodeCov : A code coverage reporting and tracking tool.
GitHub Actions : A CI/CD platform integrated with GitHub.

Create a GitHub Actions Workflow

Let’s create a GitHub Actions workflow for code coverage analysis and run the same job for different Ruby versions. This will be done by leveraging GitHub Actions matrix strategies.

# coverage.yml
jobs:
  coverage:
    name: "Ruby ${{ matrix.ruby-version }}"
    runs-on: ubuntu-latest
    strategy:
      fail-fast: false
      matrix:
        ruby-version:
          - "2.7"
          - "3.0"
          - "3.1"
          - "3.2"
          - "3.3"
          - "head"

    steps:
      - uses: actions/checkout@v4

      - uses: ruby/setup-ruby@v1
        with:
          ruby-version: ${{ matrix.ruby-version }}
          rubygems: 3.4.22 # last version to support Ruby 2.7

Next, we need to install the gems required for generating the coverage report as described in Ruby Code Coverage setup guide.

# coverage.yml
jobs:
  coverage:
      # .. more

      - run: gem install rake rspec simplecov simplecov-html simplecov-cobertura
      - run: rake coverage:run

      - run: sudo apt install tree
      - run: tree -a coverage

      - uses: actions/upload-artifact@v4
        with:
          name: "coverage-ruby-${{ matrix.ruby-version }}"
          path: coverage/ruby-*
          include-hidden-files: true
          retention-days: 1

The tree command is included in the example for troubleshooting purposes. In the case of Ruby 3.3, we should see the following output after executing the tree command:

coverage
└── ruby-3.3.5
    ├── .last_run.json
    ├── .resultset.json
    ├── .resultset.json.lock
    └── coverage.xml

1 directory, 4 files

The coverage result from each Ruby version will be uploaded to GitHub Actions Artifacts.

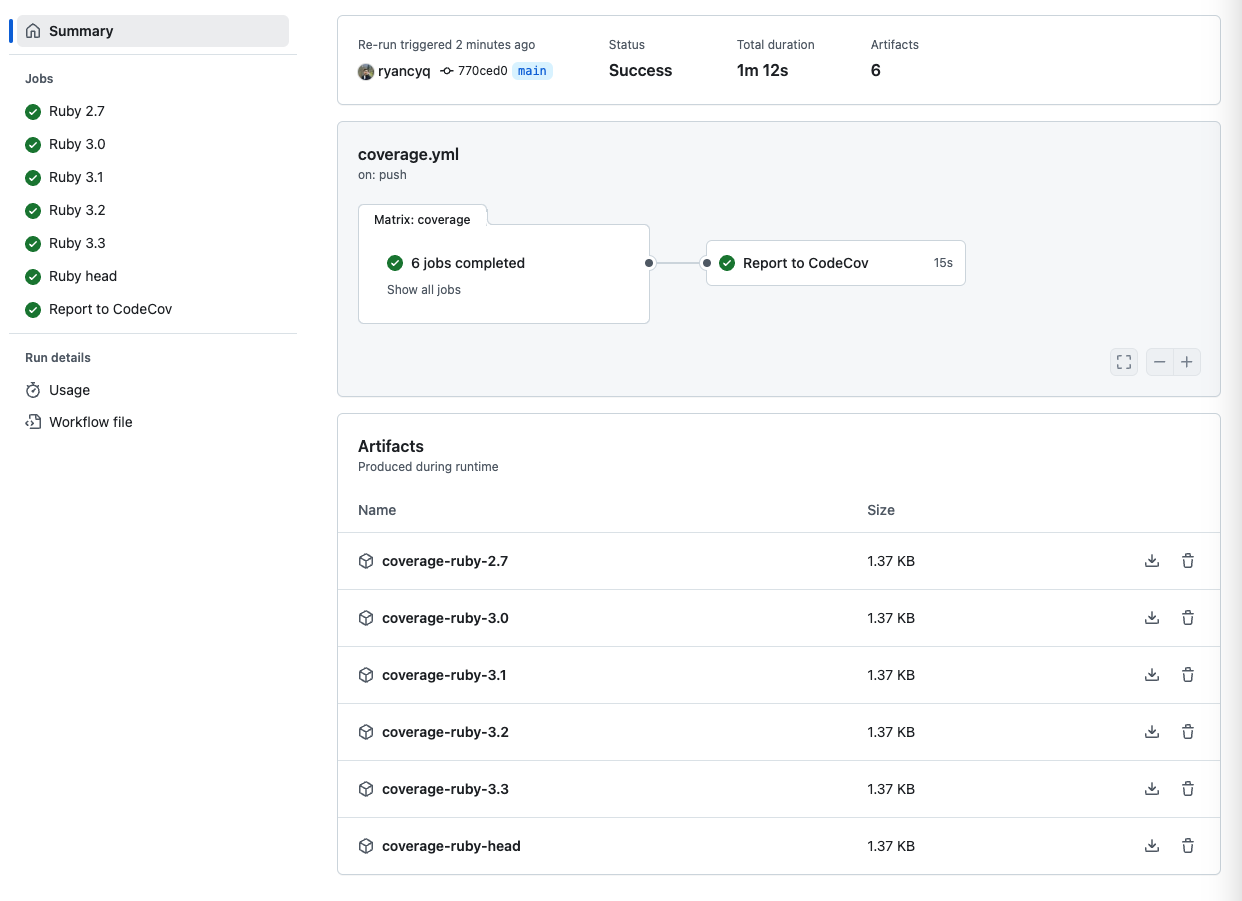

Code Coverage Artifacts — Code Coverage results uploaded to CodeCov

Collate Coverage Reports from Test Runners

Next, we need to add another report job to collate the coverage results into a single coverage result.

# coverage.yml
jobs:
  # .. more

  report:
    name: "Report to CodeCov"
    needs: [coverage]
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - uses: actions/download-artifact@v4
        with:
          pattern: coverage-ruby-*
          path: coverage-results
          merge-multiple: true

      - uses: ruby/setup-ruby@v1
        with:
          ruby-version: "3"

      - run: gem install rake rspec simplecov simplecov-html simplecov-cobertura
      - run: rake coverage:report
        env:
          COV_DIR: coverage-results

      - run: sudo apt install tree
      - run: tree -a coverage-results
      - run: tree -a coverage

The outputs from the tree commands above should look something like:

tree -a coverage-results

coverage-results
├── ruby-2.7.8
│   ├── .last_run.json
│   ├── .resultset.json
│   ├── .resultset.json.lock
│   └── coverage.xml
├── ruby-3.0.7
│   ├── .last_run.json
│   ├── .resultset.json
│   ├── .resultset.json.lock
│   └── coverage.xml
├── ruby-3.1.6
│   ├── .last_run.json
│   ├── .resultset.json
│   ├── .resultset.json.lock
│   └── coverage.xml
├── ruby-3.2.5
│   ├── .last_run.json
│   ├── .resultset.json
│   ├── .resultset.json.lock
│   └── coverage.xml
├── ruby-3.3.5
│   ├── .last_run.json
│   ├── .resultset.json
│   ├── .resultset.json.lock
│   └── coverage.xml
└── ruby-3.4.0
    ├── .last_run.json
    ├── .resultset.json
    ├── .resultset.json.lock
    └── coverage.xml

6 directories, 24 files

tree -a coverage

coverage
├── .last_run.json
├── .resultset.json
├── .resultset.json.lock
└── coverage.xml

0 directories, 4 files

Report to CodeCov

In the next step, we will pass the coverage directory (which contains the collated coverage result) to CodeCov Action.

# coverage.yml
jobs:
  # .. more

  report:
    steps:
        # .. more

      - name: Upload coverage to Codecov
        uses: codecov/codecov-action@v4
        with:
          directory: coverage
          token: ${{ secrets.CODECOV_TOKEN }}
          fail_ci_if_error: true

Report to CodeCov with Flags

Alternatively, if you want to leverage CodeCov Flags to have a better overview of the coverage result for each Ruby version, we could skip coverage result collation and upload individual coverage results to CodeCov with the corresponding flags.

# coverage.yml
jobs:
  # .. more

  report:
    name: "Report to CodeCov"
    needs: [coverage]
    runs-on: ubuntu-latest
    strategy:
      fail-fast: false
      matrix:
        ruby-version:
          - "2.7"
          - "3.0"
          - "3.1"
          - "3.2"
          - "3.3"
          - "head"

    steps:
      - uses: actions/checkout@v4

      - uses: actions/download-artifact@v4
        with:
          pattern: "coverage-ruby-${{ matrix.ruby-version }}*"
          path: coverage

      - run: sudo apt install tree
      - run: tree -a coverage

      - name: Upload coverage to Codecov
        uses: codecov/codecov-action@v4
        with:
          directory: coverage
          token: ${{ secrets.CODECOV_TOKEN }}
          flags: "ruby-${{ matrix.ruby-version }}"
          fail_ci_if_error: true

In the modified report job, we’ve removed the need for ruby-setup to collate coverage results, and artifacts are now downloaded one at a time.

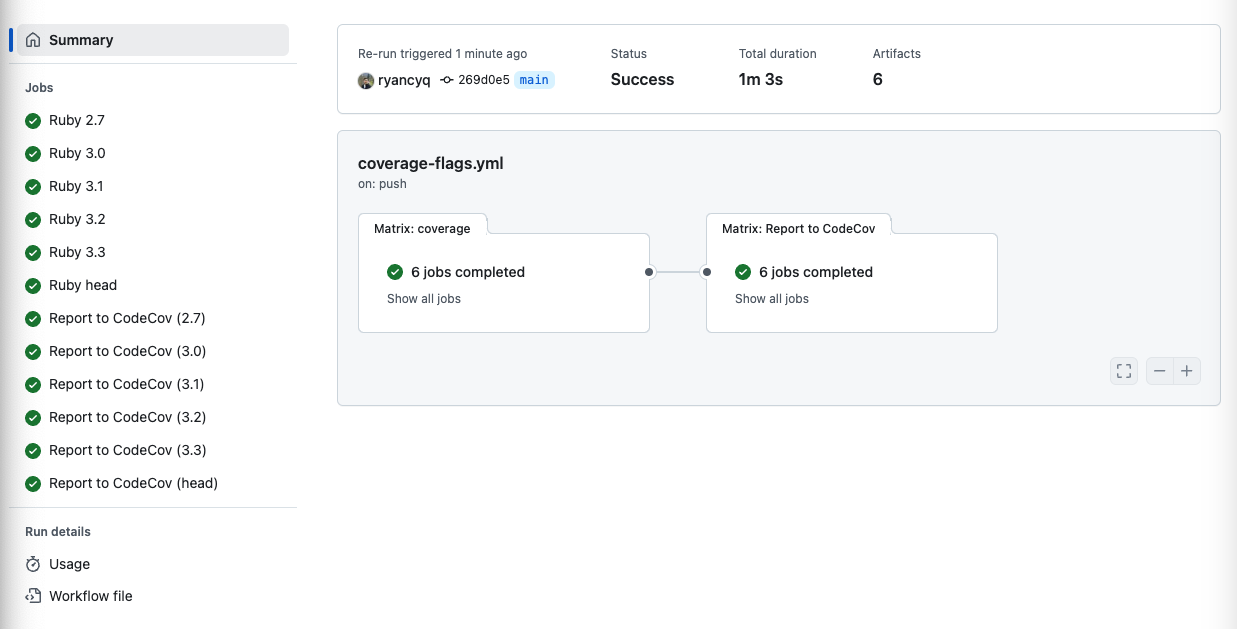

Code Coverage uploaded to CodeCov with flags

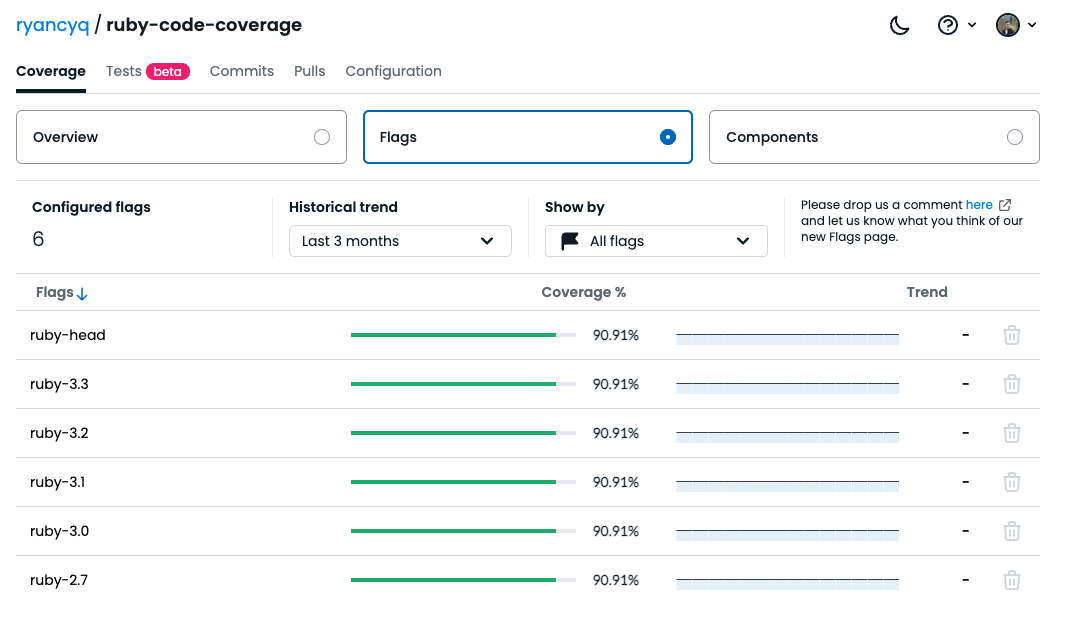

The coverage report for each Ruby version remains around 91% due to the if-else statement on RUBY_VERSION.

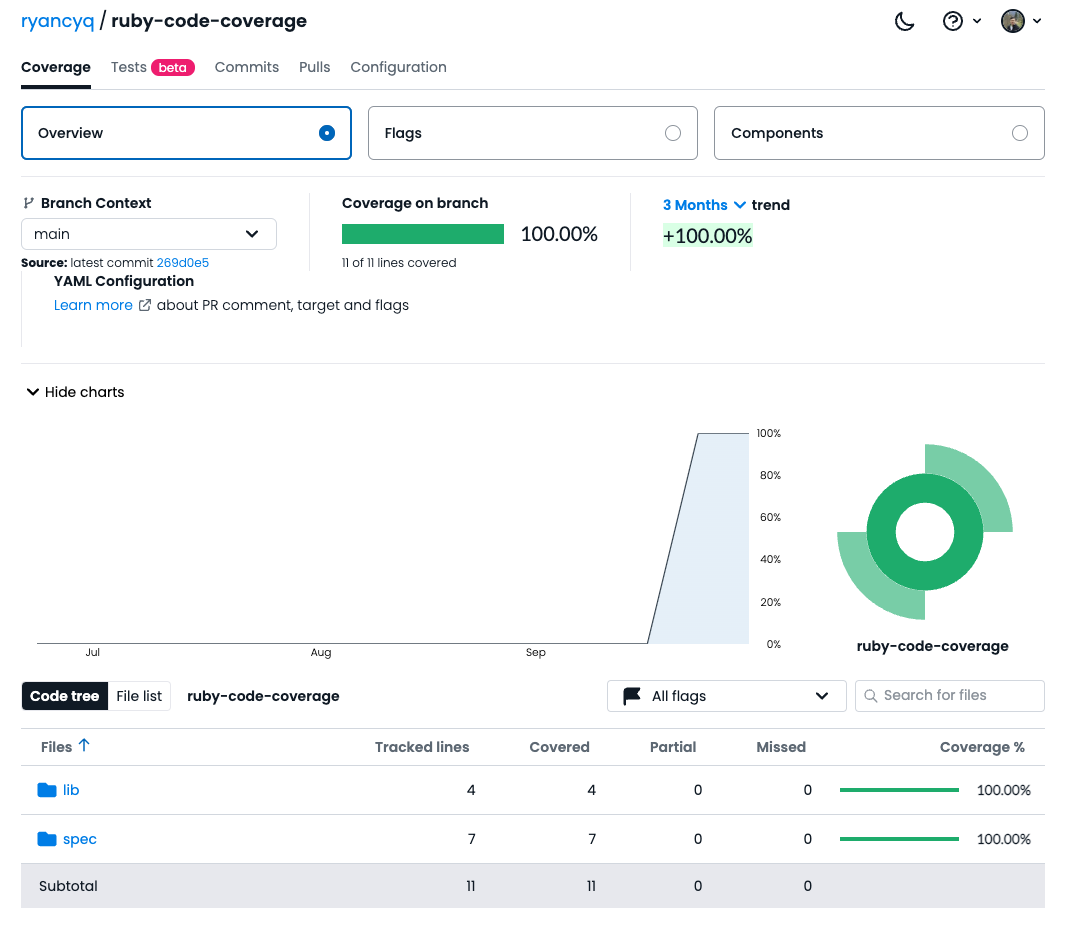

However, the overall code coverage stays at 100% as the result of merging the individual coverage reports.
