Ruby Code Coverage for Backward Compatibility with RSpec

Code coverage in Ruby is straightforward, thanks to the SimpleCov library, which supports various testing frameworks. Typically, when running coverage for web applications, the focus is on examining line and branch coverage in a standardized environment, such as a server or Docker container.

Most of the time, testing is limited to the current production environment or major updates in OS or runtime images. However, things are slightly different when it comes to Ruby libraries or standalone applications.

In this post, I’ll share my experience maintaining a Ruby library across different Ruby versions, gem dependencies, and OS versions. You can also find the example at ryancyq/ruby-code-coverage.

Prerequisites

These are the libraries being used in this project:

  • SimpleCov : A code coverage analysis tool for Ruby
  • RSpec : A behavior-driven development framework for Ruby
  • Rake : A Ruby build utility similar to Make

Code using different Ruby APIs

For example, Ruby 3.1 introduced an improvement to the File#dirname method, allowing for parent directory retrieval with an optional level parameter. For more details, you can check the issue tracker at Ruby Issue 12194.

# lib/config.rb
class Config
  ROOT = if RUBY_VERSION >= "3.1"
           File.dirname(__FILE__, 2).freeze
         else
           File.expand_path(File.join(File.dirname(__FILE__), "..")).freeze
         end
end

Write a Test with RSpec

Now write a RSpec test for Config::ROOT

# spec/config_spec.rb
require "pathname"
require_relative "../lib/config"
RSpec.describe Config do
  describe "ROOT" do
    subject { Config::ROOT }

    let(:root_dir) { Pathname.new(__dir__).parent.to_s }

    it { is_expected.to eq root_dir }
  end
end

RSpec Execution Approaches

There are two ways to execute RSpec commands:

  1. run rspec with CLI arguments. e.g. rspec --require spec_helper --format documentation.
  2. run the RSpec rake task with preconfigured setup.

    RSpec rake task will spawn child process to execute RSpec CLI with arguments.

Create RSpec Rake Task

Let’s add an RSpec rake task to simplify the command to run tests. This will become handy for code coverage later on.

# tasks/rspec.rake
require "rspec/core/rake_task"
RSpec::Core::RakeTask.new(:spec) do |config|
  config.rspec_opts = "--format documentation"
end
# Rakefile
Dir[File.expand_path("tasks/*.rake", __dir__)].each { |task| load task }

Now, run rake --tasks to see the rake tasks that have been configured.

rake spec             # Run RSpec code examples

When running the command rake spec, we will see the following output.

Config
  ROOT
    is expected to eq "/path/to/root"

Finished in 0.00058 seconds (files took 0.05219 seconds to load)
1 example, 0 failures

Configure Code Coverage when Running RSpec

With RSpec set up sucessfully, we can proceed with code coverage configuration. For this step, we will use the centeralized configuration file, .simplecov to initialize SimpleCov whenever require 'simplecov' statement is called.

Using the following configuration, the coverage report (ruby-X.X.X folder) will be generated in the folder specified by ENV['COV_DIR'] or default to coverage folder in the current working directory.

# .simplecov
SimpleCov.configure do
  enable_coverage :branch
  command_name "ruby-#{RUBY_VERSION}"
  coverage_dir File.join(ENV.fetch("COV_DIR", "coverage"), command_name)

  if ENV["CI"]
    require "simplecov-cobertura"
    formatter SimpleCov::Formatter::CoberturaFormatter
  end
end

Now, let’s create coverage.rake to run code coverage analysis through RSpec.

# tasks/coverage.rake
namespace :coverage do
  desc "Run coverage with spec"
  task :run do
    Rake::Task[:spec].invoke(coverage: true)
  end
end

We also need to modify RSpec rake task to start SimpleCov during RSpec execution.

# tasks/rspec.rake
require "rspec/core/rake_task"
RSpec::Core::RakeTask.new(:spec, [:coverage]) do |config, args|
  config.ruby_opts = "-r./.simplecov_spawn" if args[:coverage]
  config.rspec_opts = "--format documentation"
end

Following the SimpleCov Spawn Subprocesses Guide to start SimpleCov for spawned subprocesses, we’ll skip the SimpleCov.at_fork.call(Process.pid) step, as the additional fork behavior isn’t needed in this case.

# .simplecov_spawn.rb
require "simplecov"
SimpleCov.start

Now, run rake --tasks to view the updated rake tasks:

rake coverage:run     # Run coverage with spec
rake spec[coverage]   # Run RSpec code examples

When running rake coverage:run with RUBY_VERSION set to 3.3.4, the output will be:

Coverage report generated for ruby-3.3.4 to /path/to/root/coverage/ruby-3.3.4.
Line Coverage: 90.91% (10 / 11)
Branch Coverage: 50.0% (1 / 2)

Similarly, with RUBY_VERSION set to 3.0.7, you’ll see:

Coverage report generated for ruby-3.0.7 to /path/to/root/coverage/ruby-3.0.7.
Line Coverage: 90.91% (10 / 11)
Branch Coverage: 50.0% (1 / 2)

However, despite the identical output, the underlying results are completely different.

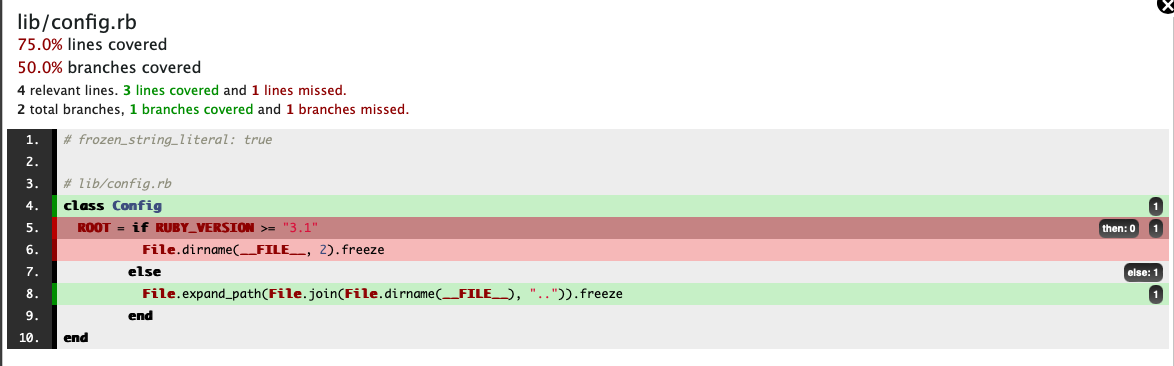

Coverage Ruby 3.0.7
coverage/ruby-3.0.7/index.html

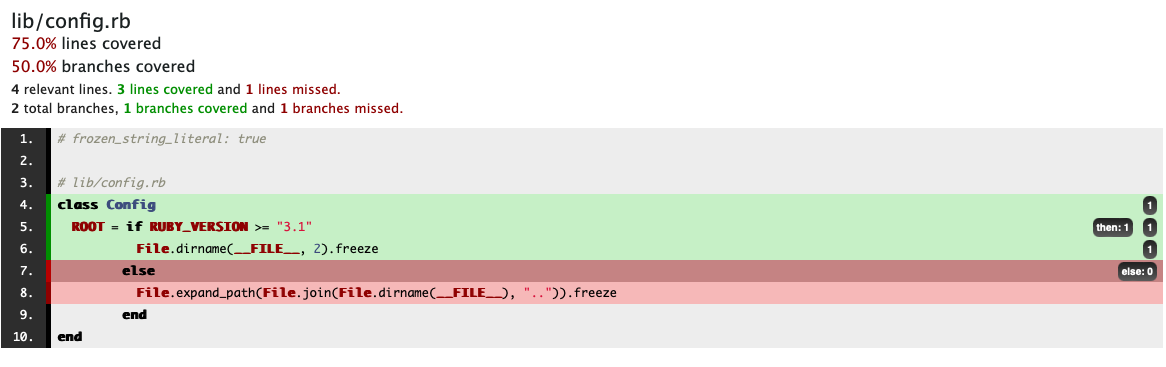

Coverage Ruby 3.3.4
coverage/ruby-3.3.4/index.html

Collate Multiple Reports into a Unified Coverage Report

Finally, we will add another rake task coverage:report to collate the coverage results into a single coverage report.

# tasks/coverage.rake
namespace :coverage do
  desc "Run coverage with spec"
  task :run do
    Rake::Task[:spec].invoke(coverage: true)
  end

  desc "Collate coverage results generated by different test runners"
  task :report do
    require "simplecov"
    coverage_dir = File.join(File.dirname(SimpleCov.coverage_dir), "ruby-*")
    coverage_results = Dir[File.join(coverage_dir, ".resultset.json")]

    raise <<~MSG if coverage_results.empty?
      Coverage results not found, searched in:
      #{Dir[coverage_dir].map { |dir| "  - #{dir}" }.join("\n")}
    MSG

    SimpleCov.collate(coverage_results) do
      coverage_dir "coverage"
    end
  end
end

desc "Run coverage analysis and collate coverage results"
task coverage: ["coverage:run", "coverage:report"]

Now, run rake --tasks to view the updated rake tasks:

rake coverage         # Run coverage analysis and collate coverage results
rake coverage:report  # Collate coverage results generated by different test runners
rake coverage:run     # Run coverage with spec
rake spec[coverage]   # Run RSpec code examples

When running rake coverage:report, the output will be:

Coverage report generated for ruby-3.0.7, ruby-3.3.4 to /path/to/root/coverage.
Line Coverage: 100.0% (11 / 11)
Branch Coverage: 100.0% (2 / 2)

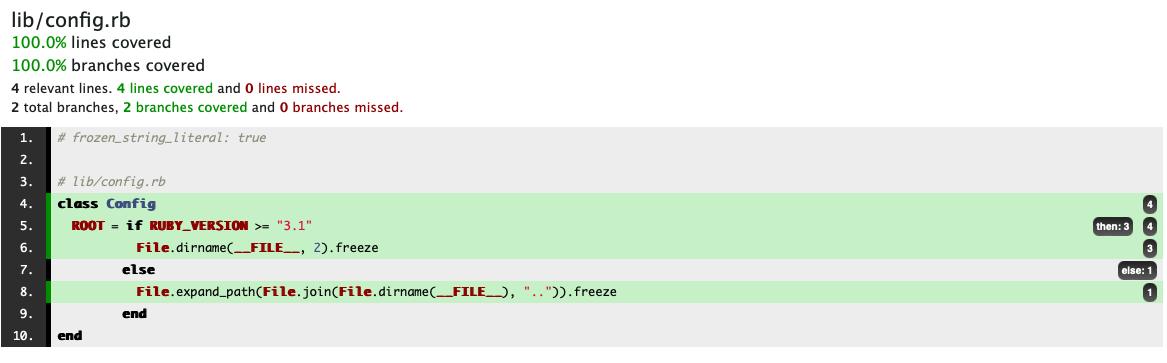

Collated Coverage
coverage/index.html

The final project structure should look like this:

├── coverage
│   ├── ruby-3.0.7
│   │   ├── assets
│   │   ├── .resultset.json
│   │   ├── index.html
│   │   └── coverage.xml # when CoberturaFormatter is enabled
│   ├── ruby-3.3.4
│   │   ├── assets
│   │   ├── .resultset.json
│   │   ├── index.html
│   │   └── coverage.xml # when CoberturaFormatter is enabled
│   ├── assets
│   ├── .resultset.json
│   ├── index.html
│   └── coverage.xml # when CoberturaFormatter is enabled
├── lib
│   └── config.rb
├── spec
│   └── config_spec.rb
├── tasks
│   ├── coverage.rake
│   └── rspec.rake
├── .simplecov
├── .simplecov_spawn.rb
└── Rakefile
